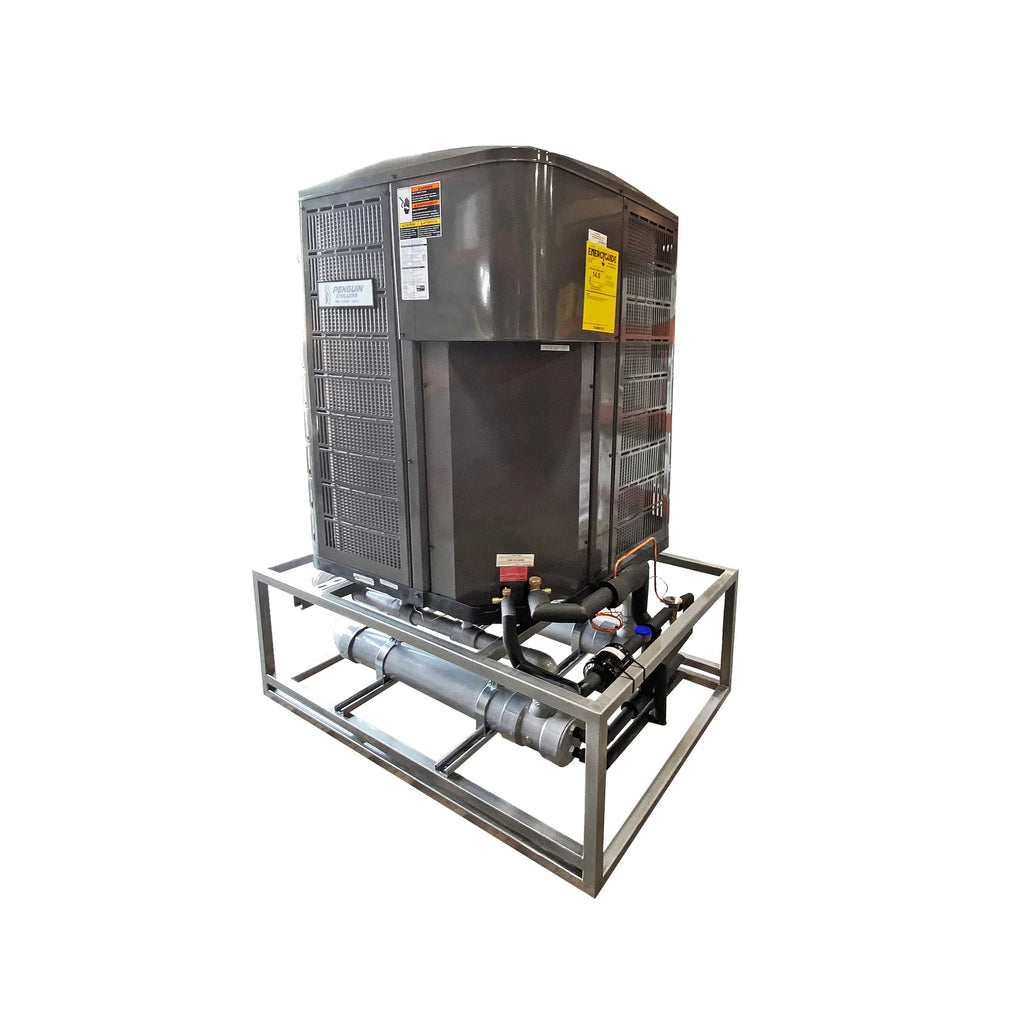

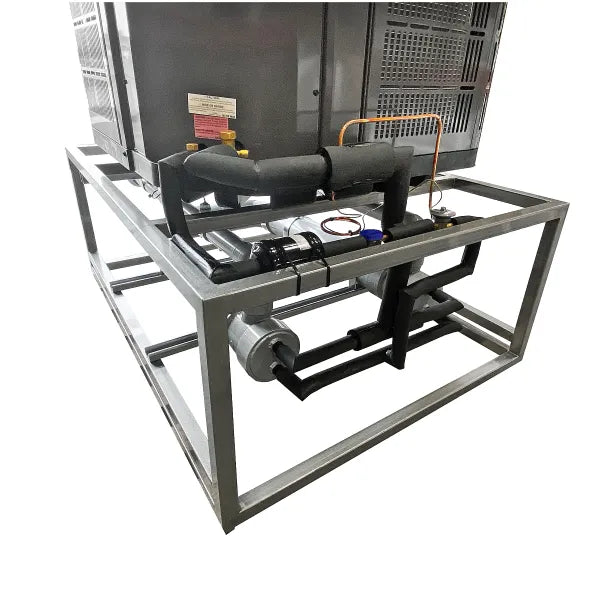

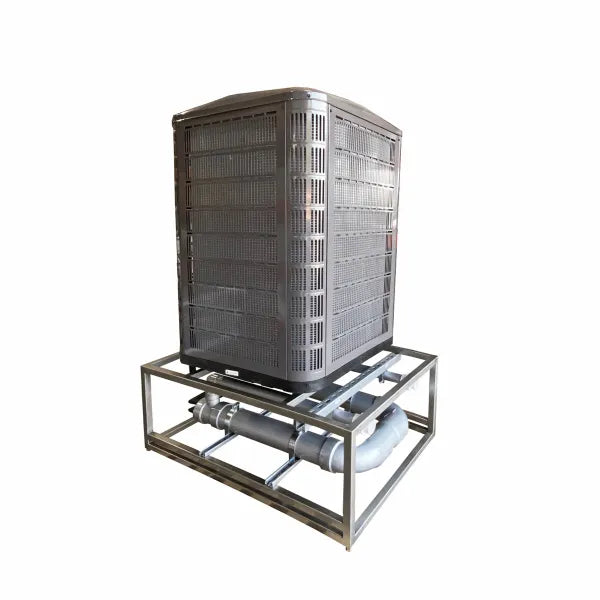

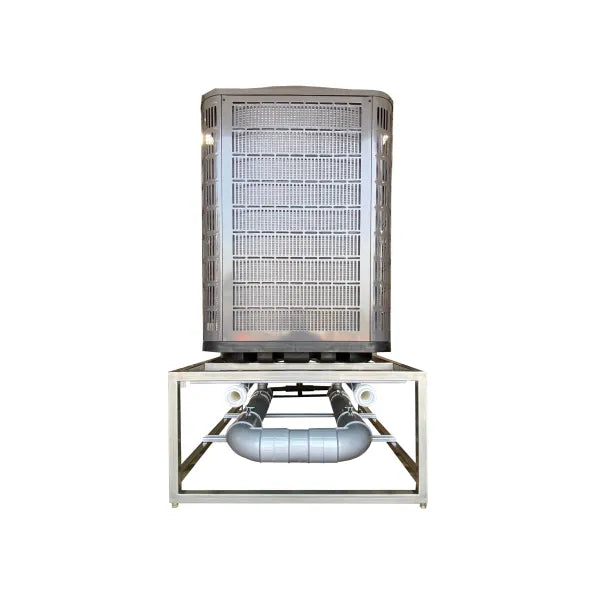

Penguin Chillers Commercial Water Chillers

Penguin Chillers’ Commercial Water Chillers are built for superior performance, featuring a robust 304 stainless steel frame. Designed with flexibility and reliability in mind, these chillers come equipped with a flow switch to safeguard against pump failure and offer both copper and optional titanium heat exchangers to suit a variety of applications. These chillers are perfect for cooling systems that require precise temperature control.

Key Features:

• Stainless Steel Construction: Ensures durability and longevity.
• Built-in Flow Switch: Protects the chiller from damage due to pump failure.
• Copper Heat Exchanger: Standard, with an optional titanium upgrade for reef tank safety.
• Outdoor Rated: Ready for use in all weather conditions (excluding freezing temperatures).
• Made in the USA: High-quality manufacturing and craftsmanship.

Product Benefits:

• Titanium Upgrade Option: Ideal for closed-loop aquarium systems, preventing copper toxicity in sensitive environments.
• User-Friendly Digital Controller: Constantly monitors the system’s water temperature and automatically adjusts to maintain the desired temperature, turning the compressor and fan on or off as needed.
• Efficient Cooling: Designed to cool large systems quickly and maintain stable temperatures.

Product Specifications

2 Ton Water Chiller:

• Cooling Capacity: 24,000 BTU/hr
• Connections: 1.5" Slip Connections
• Heat Exchanger: Copper (Titanium upgrade available)
• Voltage: 208 – 240 Volts / 17.7 Amps / Single Phase
• Weight: 245 lbs
• Dimensions: 34" W x 47" D x 50" H
• Construction: 304 Stainless Steel Frame
• Outdoor Rated / Pad Mount Ready
• Warranty: 1 Year
• Proudly Made in the USA

5 Ton Water Chiller:

• Cooling Capacity: 60,000 BTU/hr
• Connections: 1.5" Slip Connections
• Heat Exchanger: Copper (Titanium upgrade available)
• Voltage: 208 – 240 Volts / 35.6 Amps / Single Phase
• Weight: 333 lbs
• Dimensions: 34" W x 47" D x 63" H
• Construction: 304 Stainless Steel Frame
• Outdoor Rated / Pad Mount Ready
• Warranty: 1 Year
• Proudly Made in the USA

Installation & Compatibility

Pump Recommendations:

• Danner Magnetic Drive Pump: Rated between 2400 GPH and 3600 GPH. Ensure the pump is rated for less than 10 PSI max pressure.
• Controller Compatibility: Ensure consistent water flow for the controller to monitor and adjust the water temperature effectively.

Maintenance Tips

• Regular Filter Cleaning: Clean the filter once a week to prevent debris buildup, which can reduce performance and cause damage to the heat exchanger.
• Water Level Maintenance: Ensure the water level is adequate to maintain efficient chiller performance.
• Avoid Running Dry: Never run the chiller without sufficient water flow to prevent internal damage.

Common Questions

1. Can these chillers be installed outdoors? Yes, Penguin Commercial Water Chillers are designed for outdoor use in all conditions except freezing temperatures.

2. Are the chillers safe for cold therapy? While standard water chillers can handle cold therapy in some cases, we recommend the Cold Therapy Chiller for optimal performance and safety.

3. How do I prevent damage to my chiller? Regular filter cleaning and ensuring proper water levels will help avoid damage. Also, avoid running the chiller dry.

4. What type of pump is recommended for these chillers? We recommend pumps ranging from 500 GPH to 1,800 GPH for water chillers. For commercial units, a flow rate of 1,200 GPH to 2,500 GPH is ideal.

5. How loud are these chillers? Penguin Chillers operate relatively quietly, with specific noise ratings available on the product page.

Warranty & Support

• Warranty: 1-year product warranty
• Support: For any installation or technical issues, Penguin Chillers offers expert assistance to ensure proper operation and troubleshooting.
