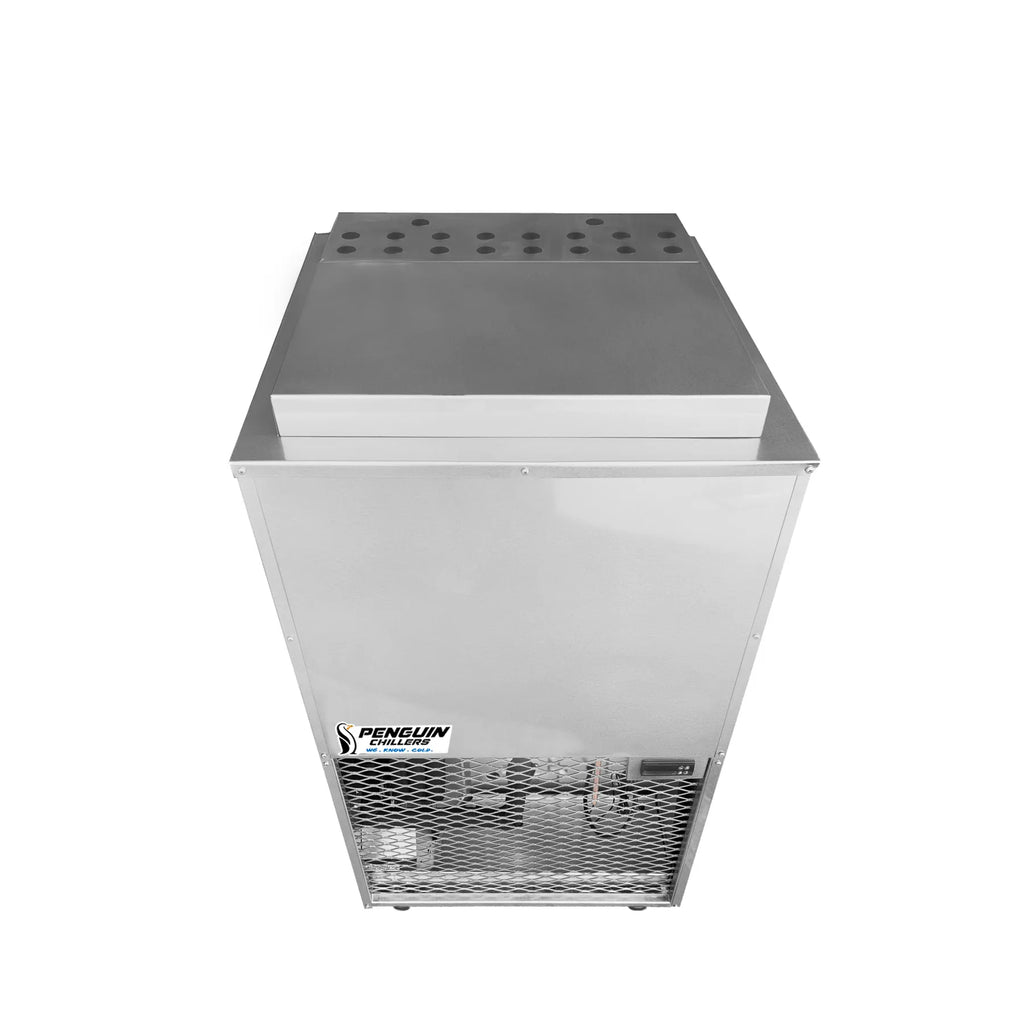

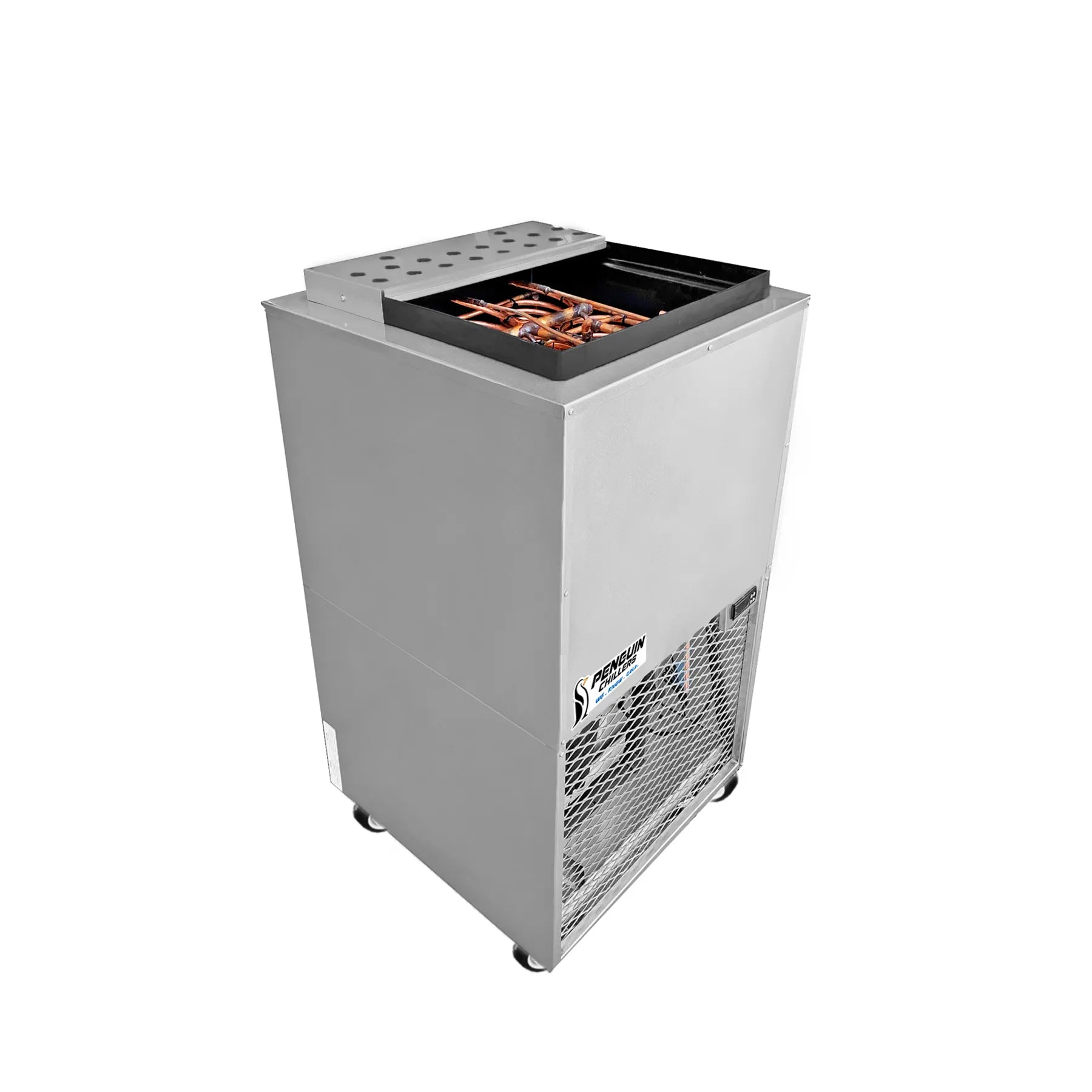

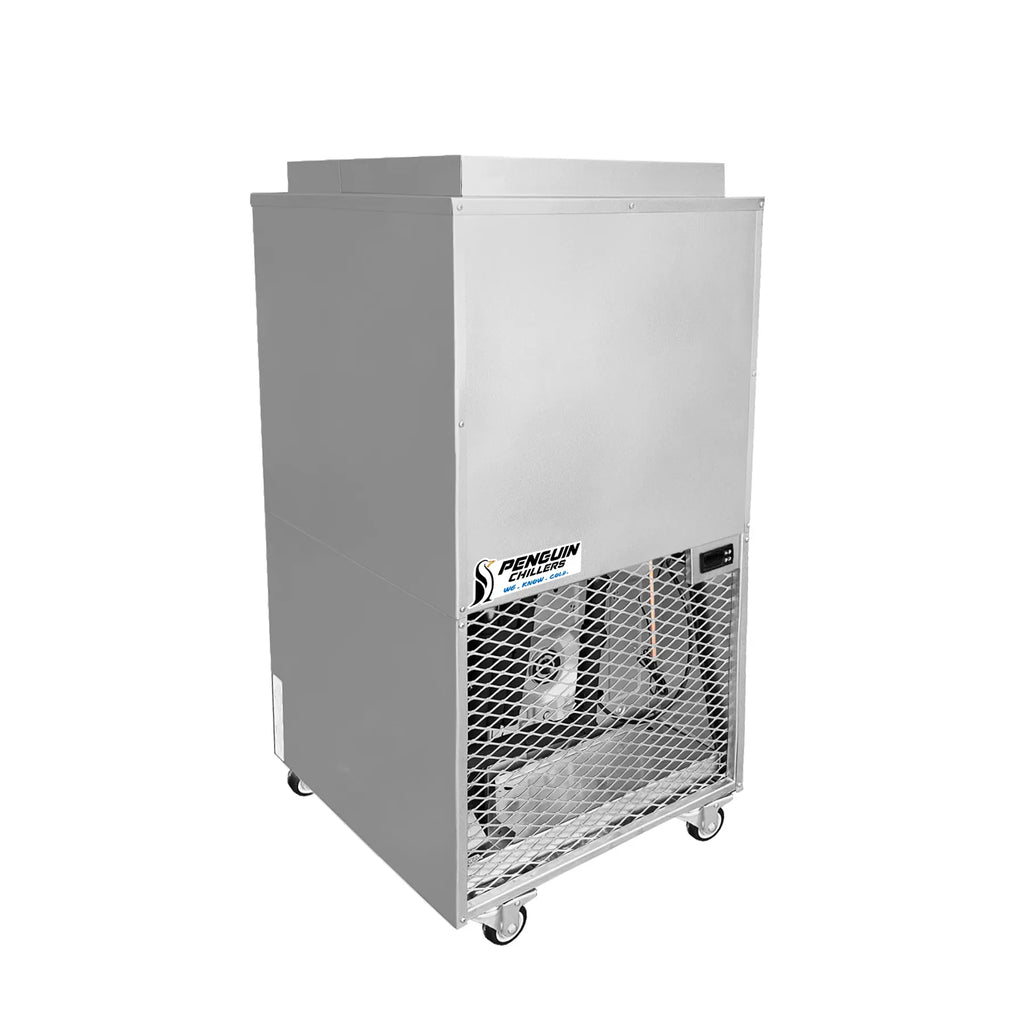

Penguin Chillers 2 HP XL Glycol Chiller

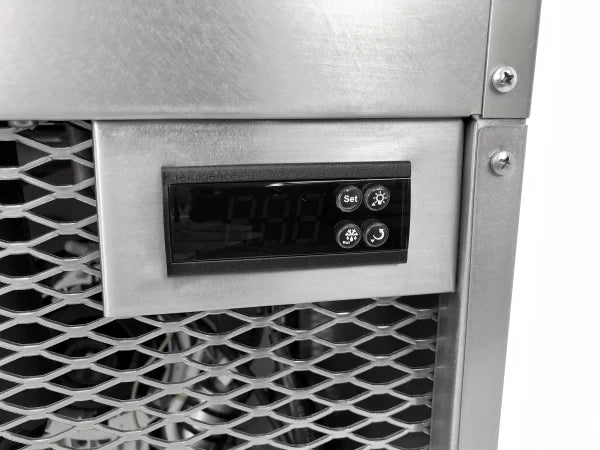

The Penguin Chillers 2 HP XL Glycol Chiller is an advanced cooling solution tailored for brewing applications but versatile enough for various temperature-critical uses. With a powerful built-in controller, it ensures precise monitoring and maintenance of glycol temperatures. Whether you’re managing fermentation temperatures, crash cooling, or laboratory applications, this chiller is engineered to deliver consistent performance.
Key Features
-
Large 22-Gallon Reservoir: Perfect for demanding cooling needs.
-
High Cooling Power: Delivers 10,000 BTU/hr @ 28°F.
-
Compact Yet Sturdy: Measures 24" W x 24" D x 45" H and weighs 125 lbs.
-
Low Noise Operation: Operates at just 61 dBA.
-
Energy Efficient: Operates on 110–120V, consuming only 1185W.
-
Durable Design: Built in the USA with a 1-year product warranty.
Applications
-
Brewing: Ideal for maintaining fermentation temperatures and crash cooling.
-
Laboratory Use: Functions as a glycol bath for experiments and processes.
-
Versatile Cooling: Supports various industries requiring cold temperatures.
Specifications
- Reservoir Capacity: 22 gallons
- Cooling Output: 10,000 BTU/hr
- Voltage: 110–120V
- Power Consumption: 10.3A / 1185W
- Noise Level: 61 dBA
- Dimensions: 24" W x 24" D x 45" H
- Weight: 125 lbs
Notes for Optimal Use
- Avoid using to drop wort directly from boiling temperatures.
- Do not allow glycol return temperatures to exceed 100°F.
- Recommended glycol mix: 35-40% glycol to 60-65% water.
Comparison with Other Models
| Model |
Reservoir |
BTU/hr @ 28°F |
Power |
Dimensions |
Weight |
| 2/3 HP |
7 Gal. |
3,000 BTU/hr |
450W (110–120V) |
18" W x 18" D x 31" H |
75 lbs |
| 1-1/3 HP |
15 Gal. |
6,500 BTU/hr |
830W (110–120V) |
22" W x 22" D x 36" H |
105 lbs |
| 2 HP (This Model) |
22 Gal. |
10,000 BTU/hr |
1185W (110–120V) |
24" W x 24" D x 45" H |
125 lbs |
| 3-1/3 HP |
25 Gal. |
16,500 BTU/hr |
2300W (208–240V) |
28" W x 28" D x 38" H |
150 lbs |
Why Choose Penguin Chillers?
- Precision engineering ensures top-notch performance for brewing and industrial applications.
- Built for reliability with high-quality materials and American craftsmanship.
- Excellent customer support and resources, including a comprehensive Owner Manual and Product FAQs.
Elevate your brewing or cooling needs with the Penguin Chillers 2 HP XL Glycol Chiller—a powerhouse designed for efficiency, durability, and versatility.
