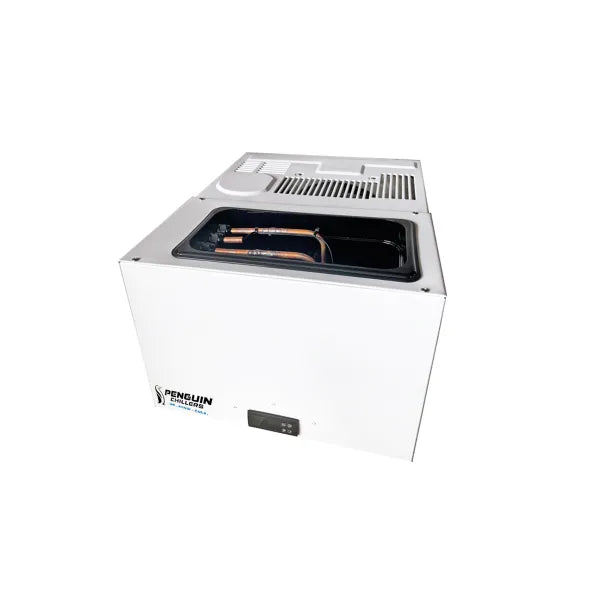

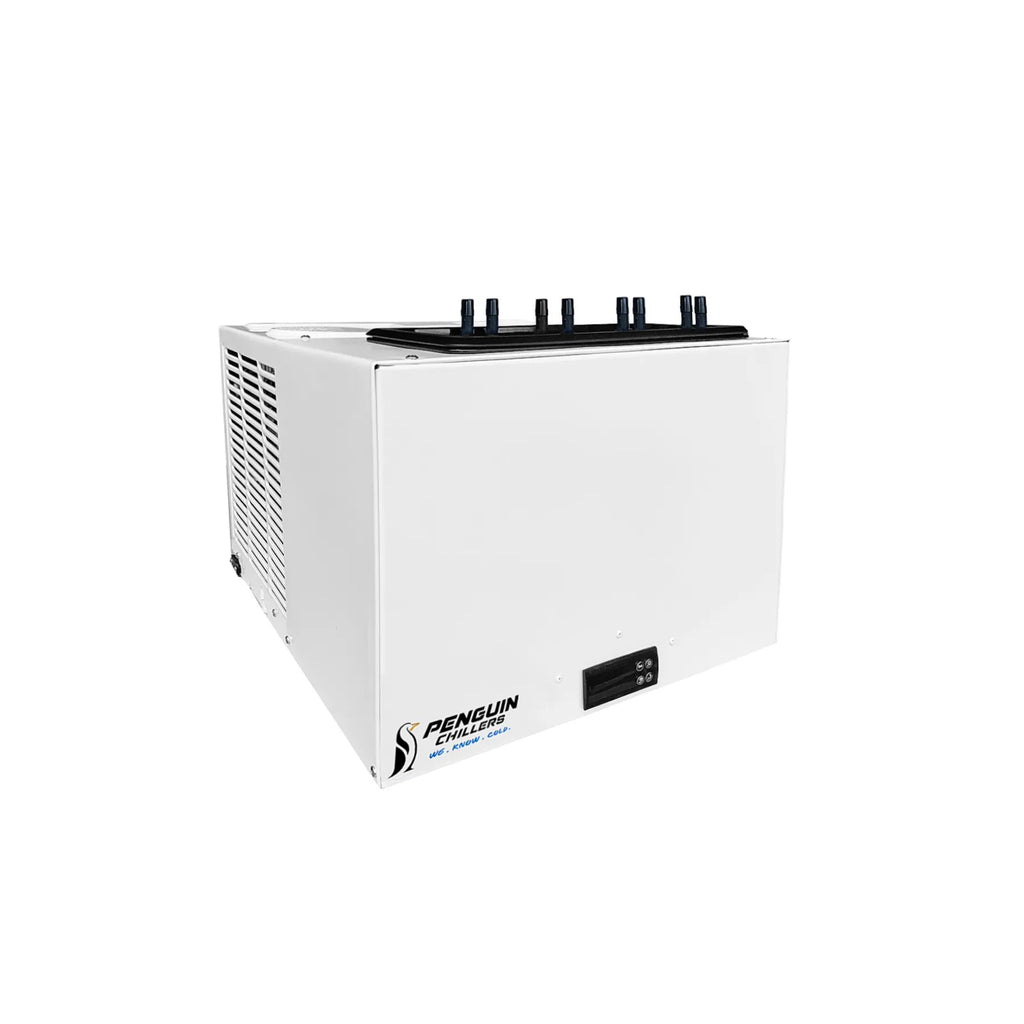

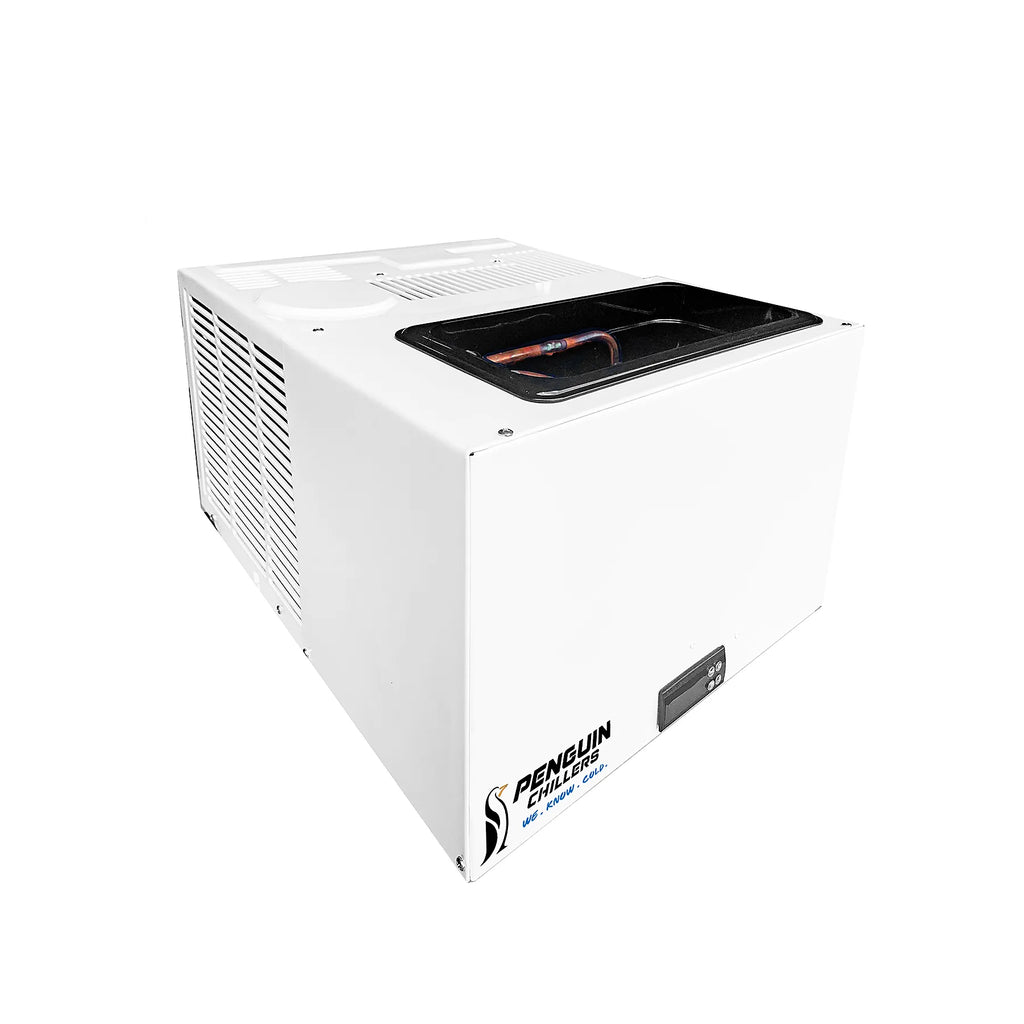

Penguin Chillers 1/3 HP Glycol Chiller
Effortlessly maintain precise temperatures with the Penguin Chillers 1/3 HP Glycol Chiller. Designed for brewing and beyond, this unit ensures reliable cooling for a variety of applications, from fermentation temperature control to laboratory-grade precision. Proudly made in the USA, it combines robust performance with user-friendly features.
Overview
-
Compact Cooling Power: Features a 1.25-gallon reservoir and delivers 2,000 BTU/hr at 28°F.
-
Versatile Application: Ideal for brewing, lab work, or any setup requiring consistent low temperatures.
-
Customizable Connections: Includes 8 double-sided barbed fittings for easy tubing setup.
-

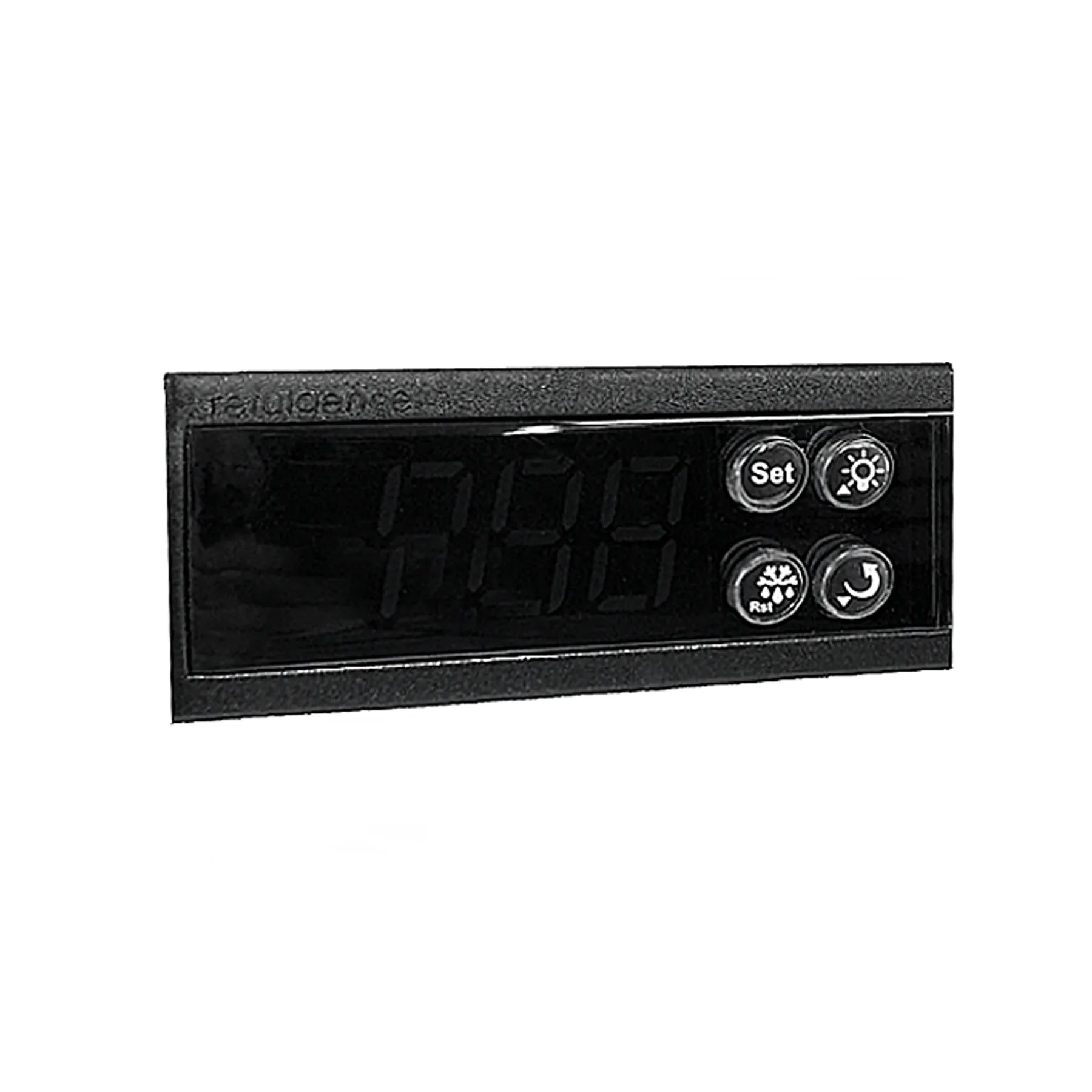

User-Friendly Design: Built-in temperature controller for precise adjustments and performance monitoring.
Benefits
- Maintains fermentation temperatures and aids in crash cooling.
- Supports multiple fermenters with its flexible setup.
- Quiet operation at just 56 dBA, perfect for indoor use.
- Durable construction for years of dependable service.
Key Features
-

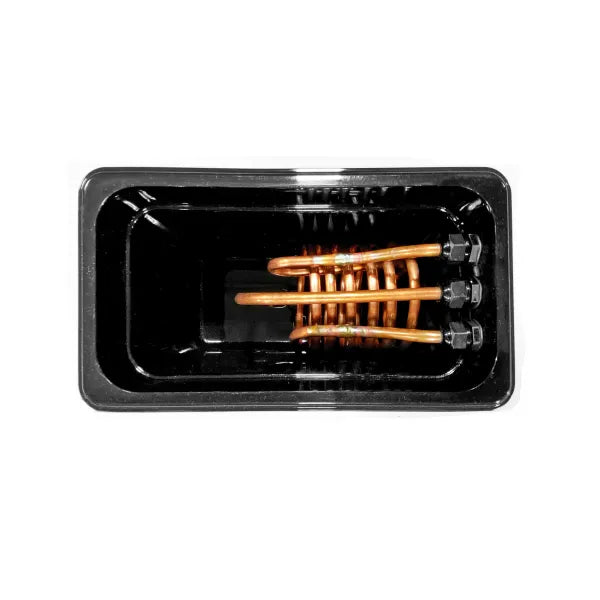

Reservoir: 1.25 gallons for efficient cooling.
-
Output Power: 2,000 BTU/hr to handle up to 15-gallon fermenters.
-
Power Requirements: 110-120V, 3.9A, 450W for energy-efficient operation.
-
Compact Size: Measures 16.25”W x 18”D x 12.5”H and weighs 41 pounds.
-
Warranty: Backed by a 1-year warranty.
Specifications
-
Dimensions: 16.25" W x 18" D x 12.5" H
-
Weight: 41 lbs
-
Noise Level: 56 dBA
-

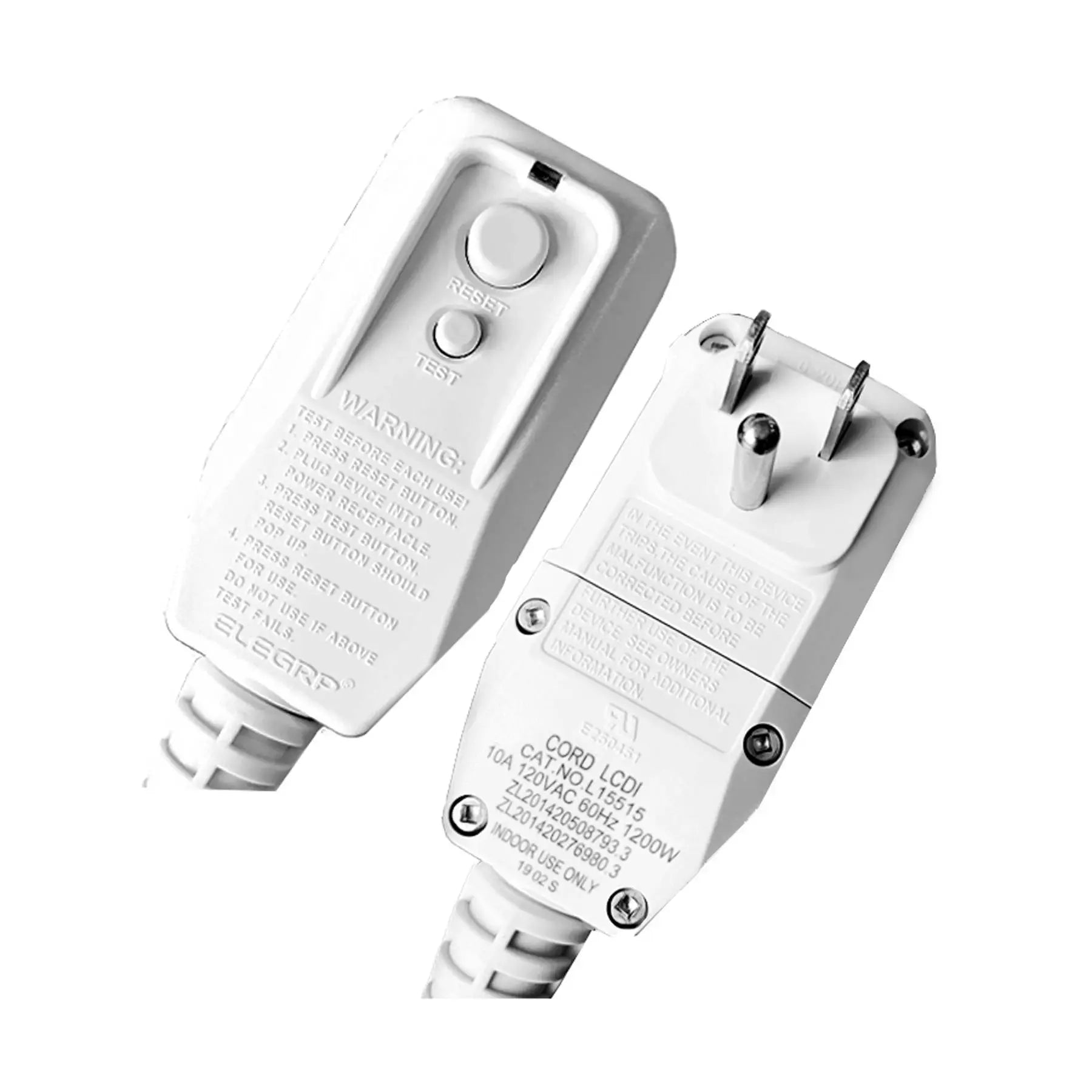

Power Cord: 6 feet
Usage Tips
-
Glycol Mix: Use a 35-40% glycol to 60-65% water mix for optimal performance at 28°F.
-
Pump Recommendations: Select submersible glycol pumps based on your system setup.
-
Filter Maintenance: Clean weekly to ensure optimal water flow and prevent ice buildup.
Applications
-
Brewing: Maintain precise fermentation and crash cooling temperatures.
-
Laboratories: Use the reservoir as a cold bath for scientific and industrial applications.
Important Notes
- Avoid running the chiller with glycol returning above 100°F.
- This unit is not designed to directly cool boiling wort.
Upgrade your cooling game with the Penguin Chillers 1/3 HP Glycol Chiller. Perfect for brewers, laboratories, and cold-process enthusiasts seeking precision and efficiency.
